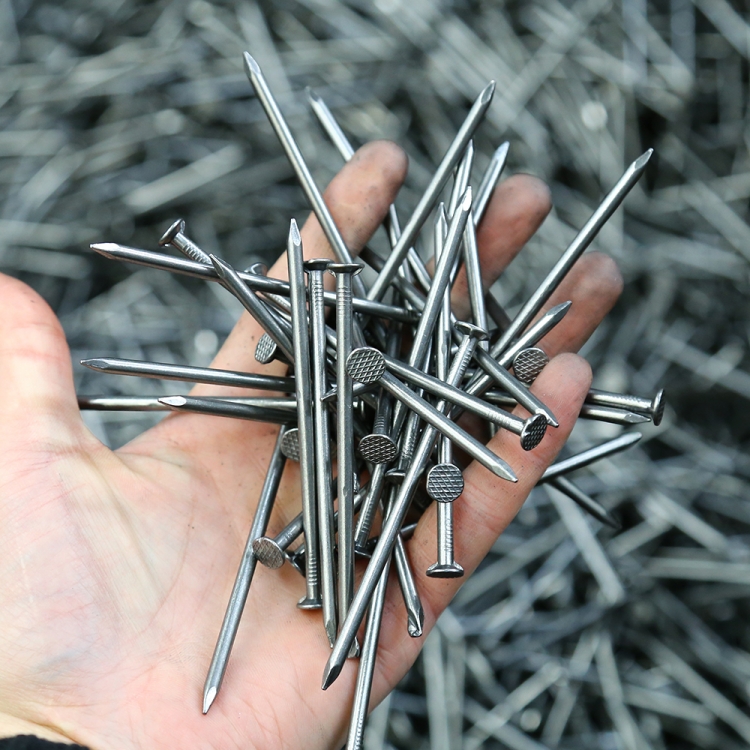

common nail is made of high quality low carbon steel wire, which has high tensile strength and strong structure. According to different materials and sizes, common nail can be divided into many types. For different nail materials, common nail has galvanized common nail, PVC coated common nail and stainless steel common nail. For different nail surface, common nail has nails with screw thread shank and smooth shank.
Material: Low carton steel(Q195, Q235)
Head: checkred round head countersunk
Shank: Smooth
Point: sharp diamont point
Diameter: BWG5-18
Length: 1/2''-8''
Finish: Polished, E.G., H.D.G
Key words: polished nails, nails for building construction, common wire nails
Designation Number
Inch
Wire Gauge (mm)
Head Width (mm)
Longth (mm)
Length of end(mm)
8#
4"
40.2+-0.03
8.0+-0.1
102±0.1
7.5±0.5
10#
3.5"
3.75+-0.03
7.5±0.01
89±0.1
6.5±0.5
11#
3
3.22+-0.03
7.05±0.01
76±0.1
5.5±0.5
12#
2.5”
3.05+-0.03
6.0±0.1
60±0.1
5.0±0.5
13#
2"
2.75+-0.03
5.5±0.1
51±0.1
5.0±0.5
14#
1.75"
2.42+-0.03
4.8±0.1
45±0.1
5.0±0.5
15#
1.5"
1.90+-0.03
4.3±0.1
38±0.1
4.0±0.5
16#
1.25"
1.72+-0.03
4.0±0.1
32±0.1
4.0±0.5
17#
1"
1.72+-0.03
3.5±0.1
25±0.1
4.0±0.5
18#
0.8"
1.52+-0.03
3.5±0.1
19±0.1
3.5±0.5
