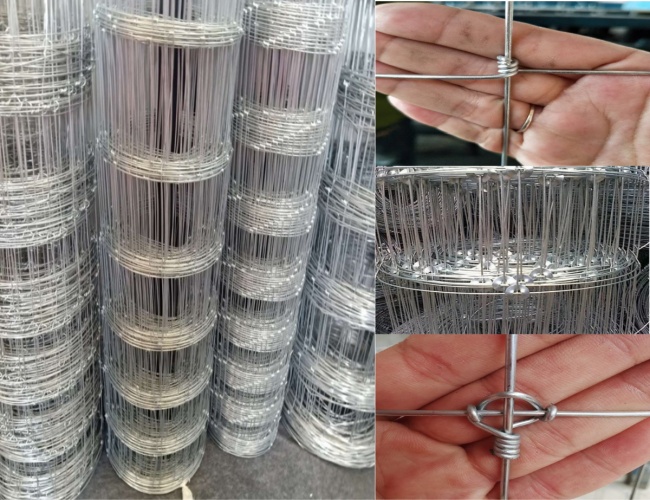

Farm Fence . Field Fence is the most ideal wire fence for farm and ranch uses. the fence opening can be square, rectangular or spacing. field fence can have many weaving types, such as fixed knot fence, hinge joint fence, square deal knot fence, diamond mesh fence, woven wire fence and chain link field fence. There are very widely range uses and features.
Material: low carbon steel wire(Q195), Tensile strength:550N/MM2
Diameter of all wires used: Top / BOTTOM wire dia: 2.5MM-3.6mm
Line /stay wire dia area: 1.7MM-2.5mm
Top and Bottom wire diameter:2.0-3.2mm
Hardness Mpa of all wires: according to consumer. (700-1400Mpa)
Uprightness wire space: 5cm-60cm
High area: 50cm-200cm
Length for one rolls: 25m-200m
Style
Specification
Edge Wire Dia
Inner Wire Dia
7/150/813/50
102+114+127+140+152+178
2.5
2.0
8/150/813/50
89(75)+89+102+114+127+140+152
2.5
2.0
8/150/902/50
89+102+114+127+140+152+178
2.5
2.0
8/150/1016/50
102+114+127+140+152+178+203
2.5
2.0
8/150/1143/50
114+127+140+152+178+203+229
2.5
2.0
9/150/991/50
89(75)+89+102+114+127+140+152+178
2.5
2.0
10/150/1245/50
102+114+127+140+152+178+203+229
2.5
2.0
10/150/1194/50
89(75)+89+102+114+127+140+152+178+203
2.5
2.0
10/150/1334/50
89+102+114+127+140+152+178+203+229
2.5
2.0
11/150/1442/50
89(75)+89+102+114+127+140+152+178+203+229
2.5
2.0
(mm)
(mm)
